Ortho Clinical Diagnostics
Chemistry Analyzer Vitros 4600 CLIA Non-Waived
PRODUCT HIGHLIGHTS
- Measurement principle Colorimetric/rate, potentiometric (direct ISEs), immuno-rate, turbidimetric
- Calibration Up to 25 lots per assay with automatic lot switching; microslide and microtip assays stable up to lot change; random-access calibration; bar-coded calibrators for microslide assays
- Dilution capabilities Auto reflex dilution; operator requested dilution; off-board dilution calculation
- Operator interface Color-coded graphical user interface; ergonomic flat, low-glare, LCD, 17 Inch touchscreen monitor; numeric keypad on monitor; detached keyboard for maximum flexibility; onboard documentation and animated help (V-Docs); onboard maintenance documentation
Fast Delivery
Auto Delivery , Free Shipping For $100 Above Products
| Item | Description | Quantity | Price |
|---|---|---|---|
|
6802445
|
CHEMISTRY SYSTEM, IMMUNODIAGNOSTIC VITROS 4600 D/S Ships directly from the manufacturer. Additional shipping charges may apply.This Item is non-returnable & non-refundable |
1 Each |
List Price:$233,277.99 Price:$225,752.99 You save $7,525.00 Add To Cart
|
Description

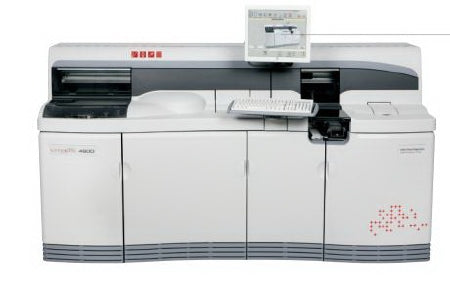

The Vitros 4600 by Ortho Clinical Diagnostics is a robust floorstanding chemistry analyzer designed for high-volume clinical laboratories. Engineered for precision and reliability, it supports a broad menu of assays, including chemistry, therapeutic drug monitoring (TDM), direct antiglobulin testing (DAT), toxicology, metabolic, protein, diabetes, and immunosuppressants.
With a throughput of up to 845 tests per hour and rapid time to results, the Vitros 4600 offers an advanced user interface and comprehensive data management to streamline workflow and improve operational efficiency. Its flexible sample handling accommodates a variety of containers and sample types, supporting whole blood, serum, plasma, urine, and amniotic fluid testing.
Key Features
-
High throughput: up to 845 tests/hour for fast lab turnaround
-
Multiple measurement principles: colorimetric/rate, potentiometric (direct ISE), immuno-rate, turbidimetric
-
Supports up to 8940 onboard assays with 10 user-defined MicroTip channels
-
Flexible sample container compatibility including standard tubes, micro-collection containers, and microsample cups
-
Automatic and operator-requested reflex dilution for sample management
-
Advanced calibration: up to 25 lots per assay with automatic lot switching
-
Intuitive 17-inch LCD touchscreen with color-coded graphical interface and flexible keyboard options
-
Extensive data storage and archiving with USB and CD-ROM compatibility
-
Operates efficiently in typical lab environmental conditions with broad temperature and humidity range
-
CLIA Non-Waived certified for clinical diagnostic testing
Specifications
| Specification | Details |
|---|---|
| Brand | Vitros 4600 |
| Manufacturer | Ortho Clinical Diagnostics |
| Analyzer Type | Floorstanding |
| Application | Chemistry Analyzer |
| CLIA Classification | CLIA Non-Waived |
| Dimensions | 33.5" W x 52.5" D x 92.2" H |
| Weight | 1400 lbs |
| Power Source | 200–240 V, 20 A, 47/63 Hz |
| Throughput | 845 tests per hour |
| Time to Results | 2.5 min (potentiometric), 6 min (colorimetric), 8–16 min (immuno-rate & MicroTip), up to 73 min (MicroWell) |
| Sample Capacity | 2 to 17 μL |
| Sample Types | Whole blood, serum, plasma, urine, amniotic fluid |
| Readout Type | 17" LCD touchscreen, printer |
| Calibration | Up to 25 lots per assay, auto lot switching |
| Sample Containers | 5 mL, 7 mL, 10 mL tubes, micro-collection containers, microsample cups |
| Dilution | Auto reflex, operator requested, off-board calculation |
| Operating Conditions | 15–30°C / 59–86°F, 15–75% humidity, up to 2439 m altitude |
| User Interface | Touchscreen, numeric keypad, detached keyboard |
| UNSPSC Code | 41115807 |
