Siemens
Integrated Chemistry / Immunoassay Analyzer Dimension EXL CLIA Non-Waived
PRODUCT HIGHLIGHTS
- Easy-to-use Dimension system provides the confidence that trained operators can run any test, any time
- Chemistry and immunoassay integration allows simultaneous processing to maximize workflow efficiency
- Random-access clinical chemistry and immunoassay system with LOCI® chemiluminescence technology
- 5 mL, 7 mL, 10 mL Tubes; 1.5 mL sample cups; 1 mL small sample containers and pediatric tube sample tubes
- 60 Sample positions in six 10-tube segments; positive sample identification sample wheels
- Automatic repeat testing from the original sample
Fast Delivery
Auto Delivery , Free Shipping For $100 Above Products
| Item | Description | Quantity | Price |
|---|---|---|---|
|
10486890
|
INSTRUMENT, DIMN EXL WITH LM D/S Special order from supplier. Approximate delivery is 2-4 weeks.This Item is non-returnable & non-refundable |
1 Each |
List Price:$329,105.99 Price:$318,489.99 You save $10,616.00 Add To Cart
|
Description

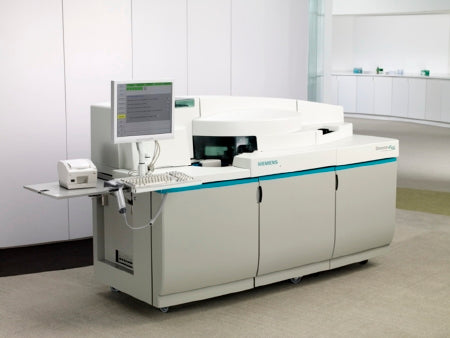

The Siemens Dimension EXL is an advanced floorstanding analyzer that integrates chemistry and immunoassay testing in one platform, delivering fast, accurate results with maximum workflow efficiency. Featuring LOCI® chemiluminescence technology and a user-friendly interface, it is ideal for high-throughput laboratories handling a broad range of diagnostic tests.
Specifications
| Specification | Details |
|---|---|
| Manufacturer # | 10486890 |
| Brand | Dimension EXL |
| Manufacturer | Siemens |
| Alternate Mfr. # | 778021.911 |
| Analyzer Type | Floorstanding |
| Application | Integrated Chemistry / Immunoassay Analyzer |
| CLIA Classification | CLIA Non-Waived |
| Contents | LM |
| Dimensions | 48 x 52 x 99 in (Normal) / 61 x 75 x 100 in (Monitor Extended) |
| Power Source | 115–230 VAC, 5.5–11 A, 50 Hz AC |
| Purchase Program | Standard Purchase Agreement |
| Readout Type | 17-inch Diagonal Monitor |
| Sample Capacity | 2–60 μL |
| Sample Types | Serum, Plasma, Urine, Cerebrospinal Fluid |
| Test Menu | Anemia, Bone Metabolism, Cardiac, Diabetes, Drugs of Abuse/Toxicology, General Chemistry, Immunosuppressant Drugs, Oncology, Reproductive Endocrinology, Specific Proteins, TDM, Thyroid |
| Throughput | 440 tests/hour (Photometric) / 187 tests/hour (IMT) / 167 tests/hour (Heterogeneous Immunoassay) |
| Time to Results | 1.5 min (IMT), 2.9–4 min (Electrolytes), 9.3 min (CMP-6), 11 min (TNI), 15.5 min (HCG) |
| User Interface | Touch Screen, Keyboard |
| Weight | 1,095 lbs |
Product Features
-
Integrates chemistry and immunoassay testing for simultaneous processing
-
LOCI® chemiluminescence technology for fast, high-quality results
-
Random-access system with automated repeat, reflex, and dilution testing
-
60-sample capacity with positive sample ID and multiple tube/container compatibility
-
Built-in checks for hemolysis, lipemia, icterus, clots, and short samples
-
Automated wash and optical filter wheel with multiple wavelength options
-
Remote access capability for diagnostics and service via Siemens Remote Service
