Siemens

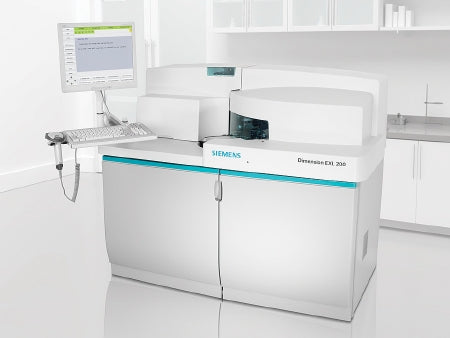

Refurbished Integrated Chemistry / Immunoassay Analyzer Dimension EXL 200 CLIA Non-Waived
PRODUCT HIGHLIGHTS
- Trusted, proven technologies, including LOCI chemiluminescence, for fast and reliable results
- Easy-to-use Dimension system provides the confidence that trained operators can run any test, any time
- Chemistry and immunoassay integration allows simultaneous processing to maximize workflow efficiency
- Random-access clinical chemistry and immunoassay system with LOCI® chemiluminescence technology
- 5 mL, 7 mL, 10 mL Tubes; 1.5 mL sample cups; 1 mL small sample containers and pediatric tube sample tubes
Fast Delivery
Auto Delivery , Free Shipping For $100 Above Products
| Item | Description | Quantity | Price |
|---|---|---|---|
|
10808301
|
INSTRUMENT, EXL 200 REFURBISHED D/S Special order from supplier. Approximate delivery is 2-4 weeks.This Item is non-returnable & non-refundable |
1 Each |
List Price:$147,115.99 Price:$142,370.99 You save $4,745.00 Add To Cart
|
Description
The Refurbished Dimension EXL 200 by Siemens is a high-performance floorstanding integrated chemistry and immunoassay analyzer, ideal for clinical laboratories seeking advanced diagnostic capability with cost-effective refurbished equipment. Certified CLIA Non-Waived, this system offers reliable, fast results with proven LOCI chemiluminescence technology and simultaneous chemistry/immunoassay processing to optimize lab workflow.
Designed for versatile sample handling, it supports serum, plasma, urine, cerebrospinal fluid, and blood, with automated dilution, reflex testing, and repeat testing features that enhance efficiency and accuracy. The system includes a large 17-inch touchscreen monitor and comprehensive software for ease of use and remote diagnostics.
Key Features
-
Refurbished unit offering advanced testing at reduced cost
-
Integrated clinical chemistry and immunoassay analyzer with LOCI® chemiluminescence technology
-
High throughput: 440 photometric tests/hr, 187 immunometric tests/hr, 167 heterogeneous immunoassays/hr
-
Supports a broad menu: anemia, bone metabolism, cardiac, diabetes, toxicology, oncology, reproductive endocrinology, TDM, and more
-
Automated reflex testing and repeat testing streamline workflow and improve diagnostic accuracy
-
Wide sample volume capacity: 2 to 60 μL from various sample types
-
60 sample positions with positive sample ID and six 10-tube segments
-
Qualitative checks for hemolysis, lipemia, icterus, clot detection, and short-sample detection
-
User-friendly 17" diagonal touchscreen monitor with keyboard interface
-
Remote access capability via Ethernet and modem with Linux-based system
-
Compact water consumption and low noise operation suitable for clinical environments
Specifications
| Specification | Details |
|---|---|
| Brand | Dimension EXL 200 |
| Manufacturer | Siemens |
| Condition | Refurbished |
| Analyzer Type | Floorstanding Integrated Chemistry/Immunoassay Analyzer |
| CLIA Classification | CLIA Non-Waived |
| Dimensions | 48" W x 52" D x 74" H (normal) |
| 61" W x 75" D x 75" H (monitor extended, lids open) | |
| Weight | 770 lbs |
| Power Source | 115–230 VAC, 5.5–11 A, 50/60 Hz |
| Throughput | 440 photometric / 187 IMT / 167 heterogeneous immunoassay tests per hour |
| Sample Capacity | 2 to 60 μL |
| Sample Types | Serum, plasma, urine, cerebrospinal fluid, blood |
| Time to Results | 1.5 mins (IMT), 2.9–4 mins (electrolytes), 9.3 mins (CMP-6), 11 mins (TNI), 15.5 mins (HCG) |
| User Interface | 17" diagonal touchscreen monitor, keyboard |
| Features | LOCI chemiluminescence, automated dilution 1:1.5 to 1:200, reflex testing, automated wash, positive sample ID, hemolysis/lipemia/icterus checks |
| Network | Ethernet, modem for remote diagnostic access |
| Operating Conditions | 18–30°C, 20–80% non-condensing humidity |
| Water Consumption | Max 5 L/hour |
| Noise Level | <75 dBA at 1 meter |
| UNSPSC Code | 41115807 |
